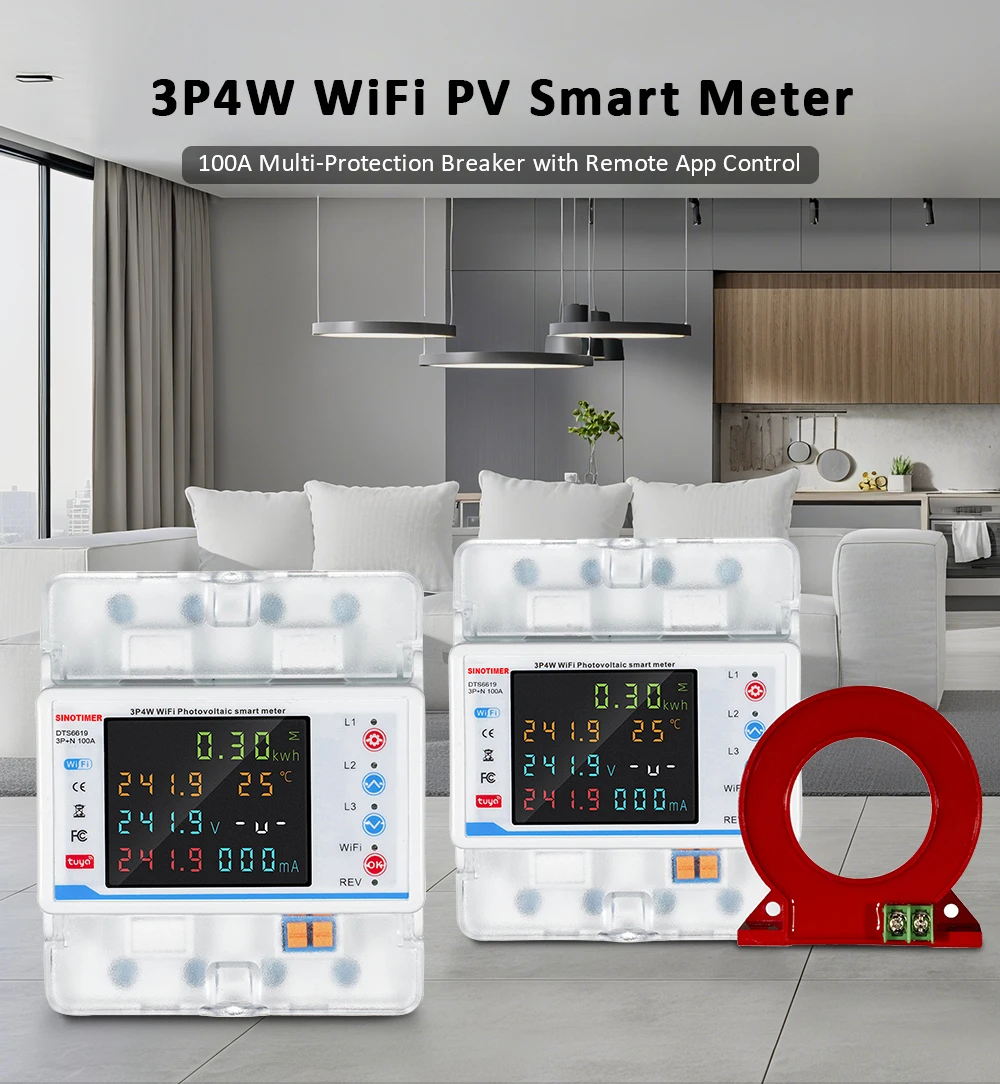

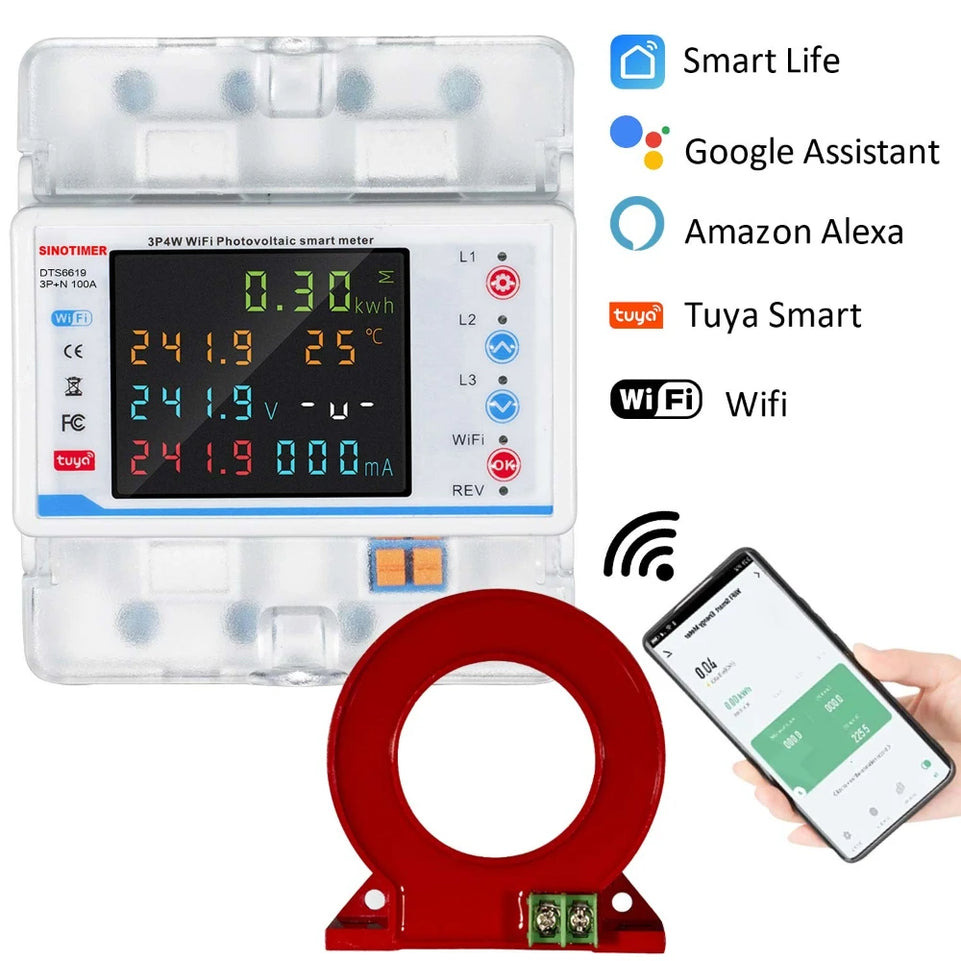

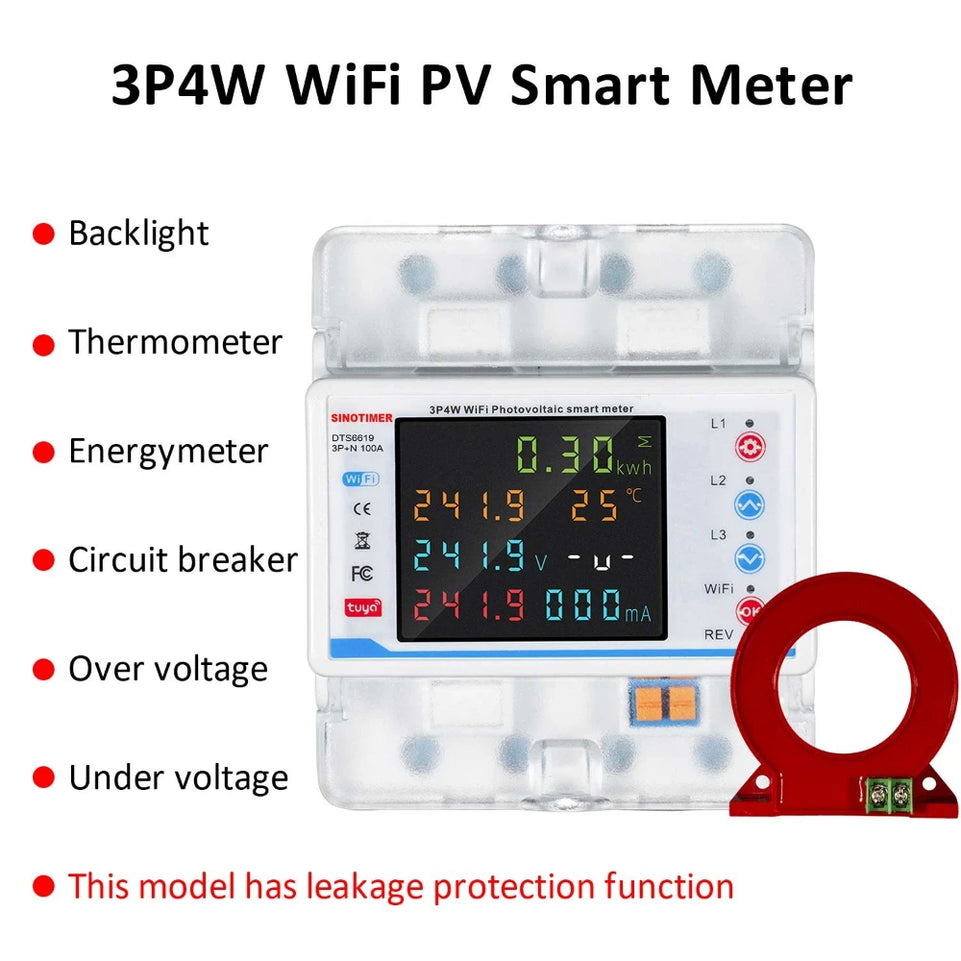

Tuya WiFi Smart Life Circuit Breaker 3 Phase Bidirectional Photovoltaic Energy Power kWh Meter Over Under Voltage Protector Switch Current Limit Leakage Protection with Remote/Voice Control 3P4W 100A PV Meters

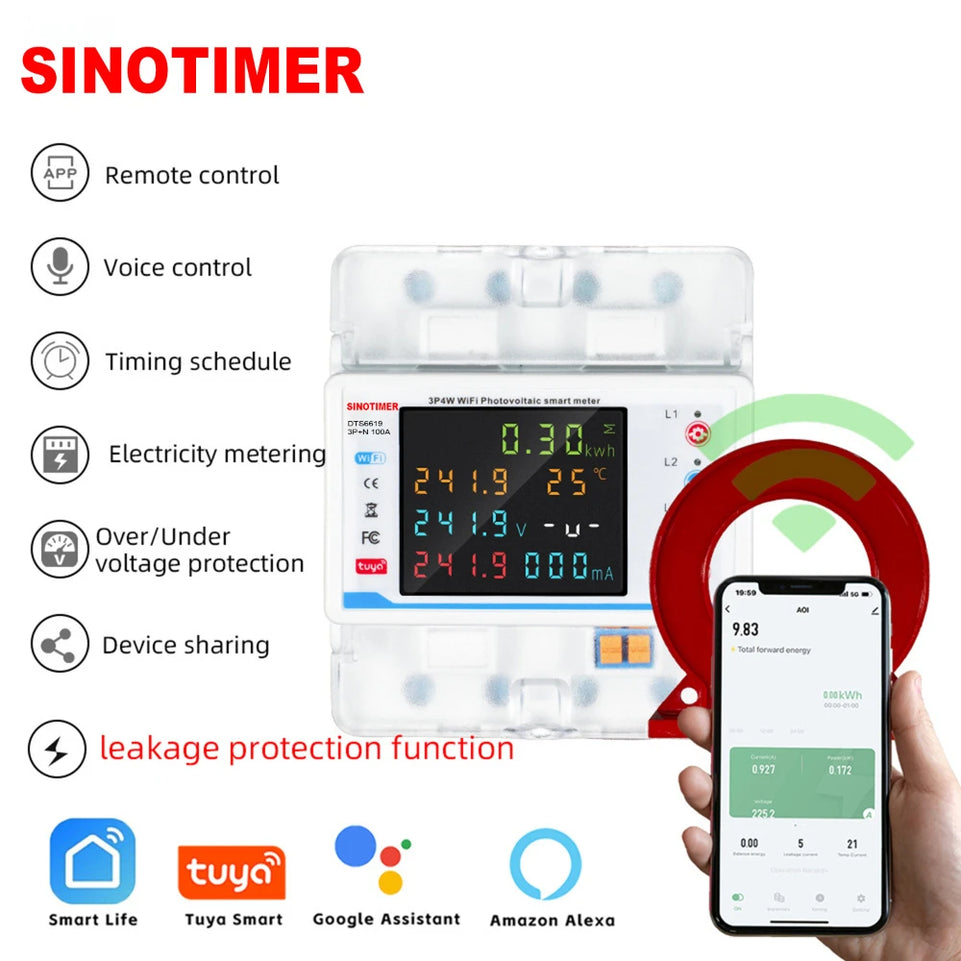

Features:

-Remote control：You can achieve remote control through a mobile app, and through the tuya smart app, you can also view data remotely while working outside.

-Timing Schedule：Timed activation，Make your life orderly ECO friendly and save electricity.
-Multiple protection: Integrating multiple functions into one, Protection settings adjustable.

-Bidirectional Photovoltaic Smart Meter


Basic Parameters:

Rated current: 100A

Rated voltage: AC380V

Operation Voltage: AC80V-400V (Single Phase)

Frequency: 50Hz/60HZ

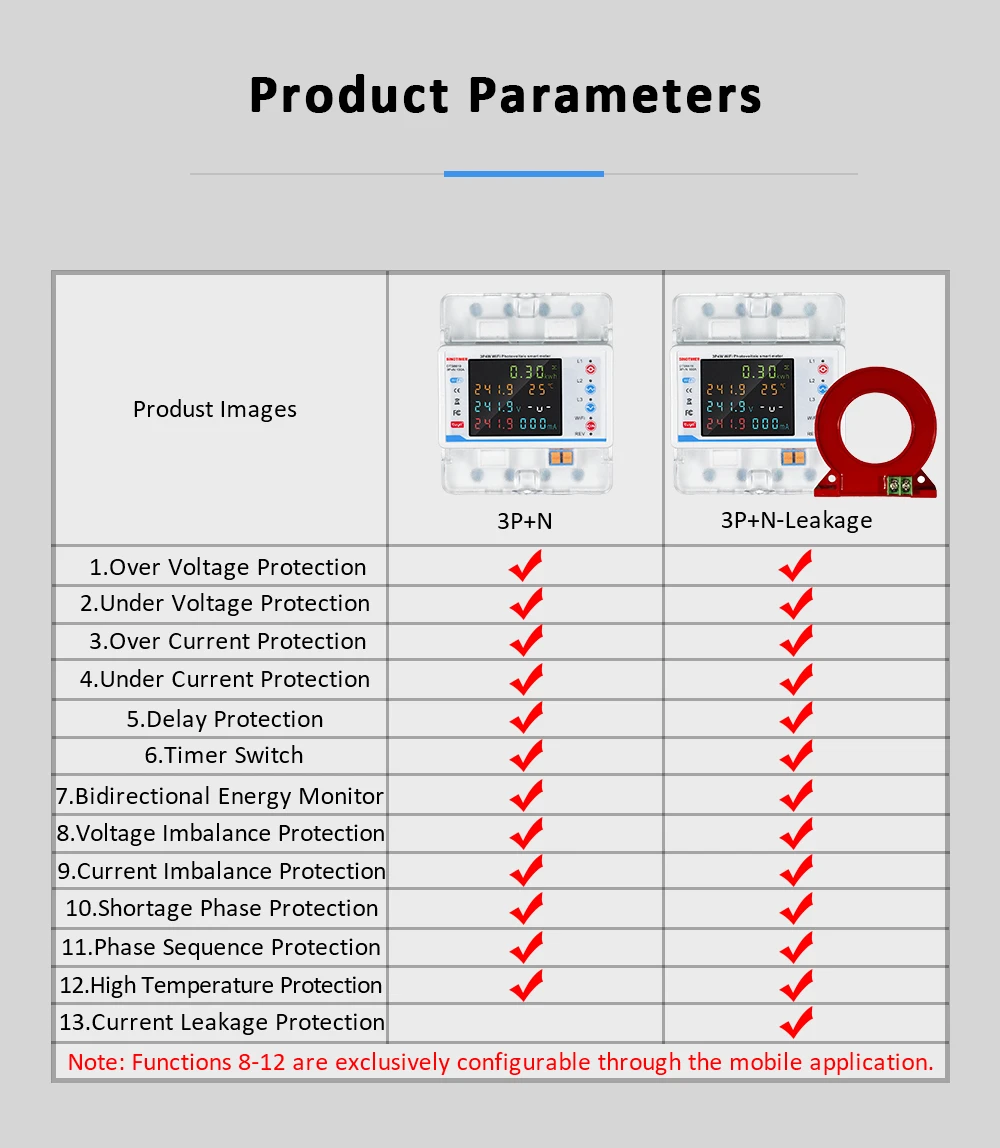

Functions:

1. Over Voltage Limit: 120-300V (Adjustable)(Default: 275V)

2. Under Voltage Limit: 80-210V (Adjustable)(Default: 175V)

3. Over Current Limit: 1-100A (Adjustable)(Default: 80A)

4. Under Current Limit: 1-100A (Adjustable)(Default: 10A)

5. Leakage Current Limit: 10-99A (Adjustable)(Default: 29mA)(! Use with Transformers !)
6. High Temperature Alarm: 10-85℃ (Adjustable) (Default: 85℃)
7. Display Mode: Display Mode 1、2 (Default: Display Mode 1)

8. Over & Under Voltage Protection Recovery Time: 1-9999s (Adjustable)(Default: 20s)
9. Over & Under Current Protection Delay: 0000-9999s (Adjustable)(Default: 5s)

10. Over & Under Current Protection Recovery Time: 0000-9999s (Adjustable)(Default: 20s)

11. Under & Over Voltage Protection Delay: 1-9999s (Adjustable)(Default: 3s)

12. Three-Phase Current Imbalance Alarm: 10-100% (Adjustable)(Default: 20%)

13. Voltage Three-Phase Imbalance Alarm: 0-100% (Adjustable)(Default: 20%)

14. Lost Current Recovery Delay Time: 1-9999s (Adjustable)(Default: 20s)

15. Time Threshold of Lost Flow Event: 1-999s (Adjustable)(Default: 10s)

16. Energy Consumption Zero Clearing: Default OFF

17. Factory Settings Reset: Default OFF

18. Device Sharing

19. Remote Control

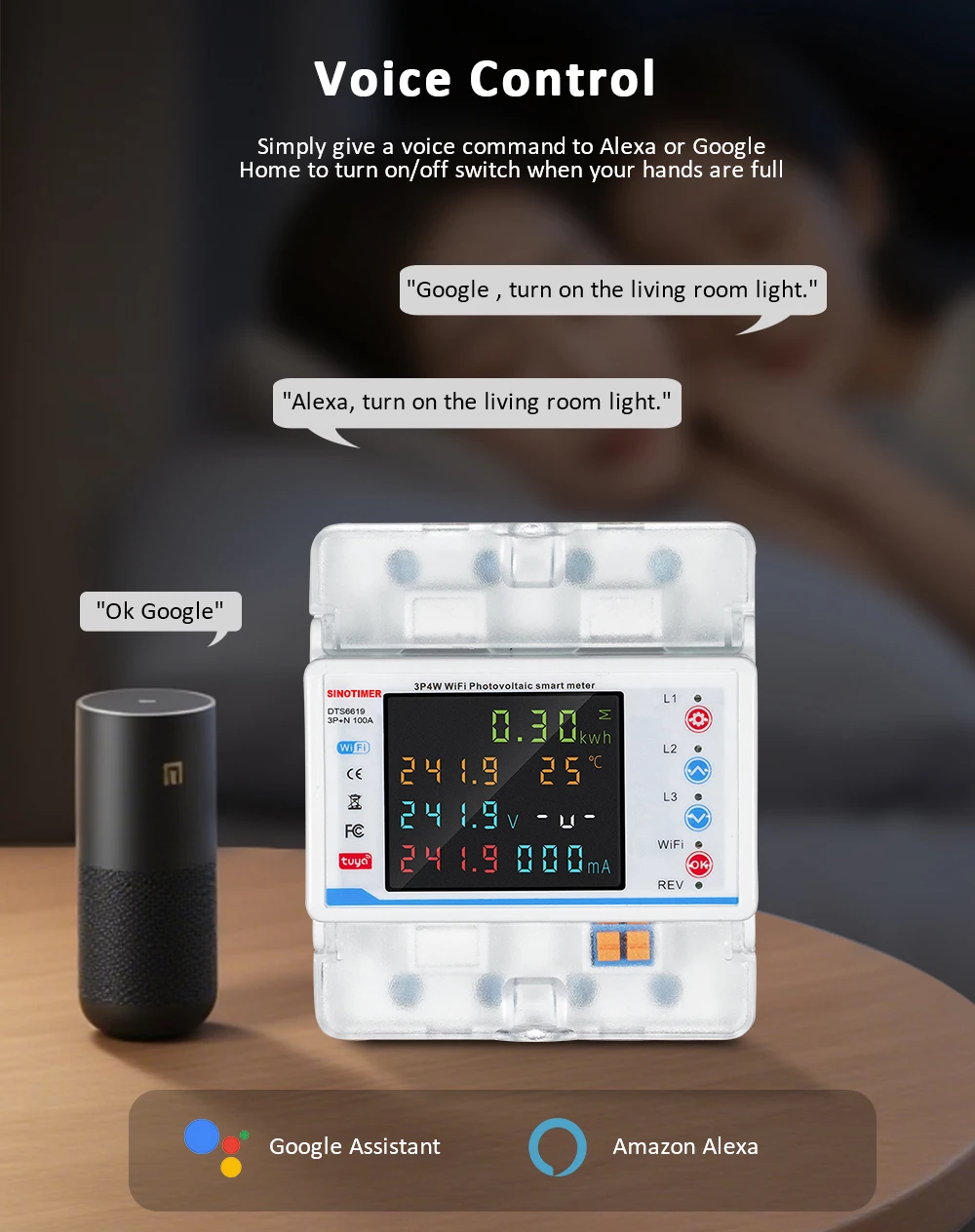

20. Voice Control


Packing included:

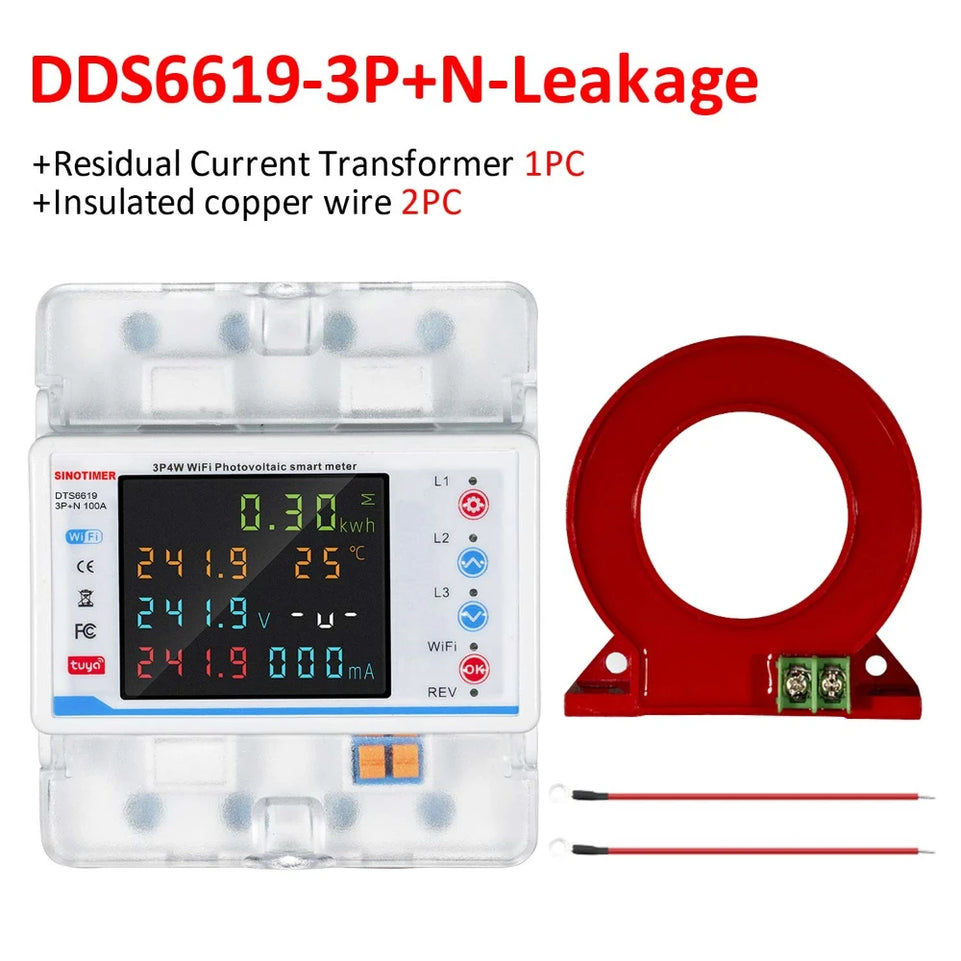

1 * Smart Circuit Breaker with Transformer

1 * Manual
